MagicStore

- 4 univers Art-Net en entrées et sorties
- 4 sorties DMX + 1 entrée DMX
- Environ 18h d’enregistrement maximum
- Utilisation et configuration via web (synchronisation en temps réel de tous les client)

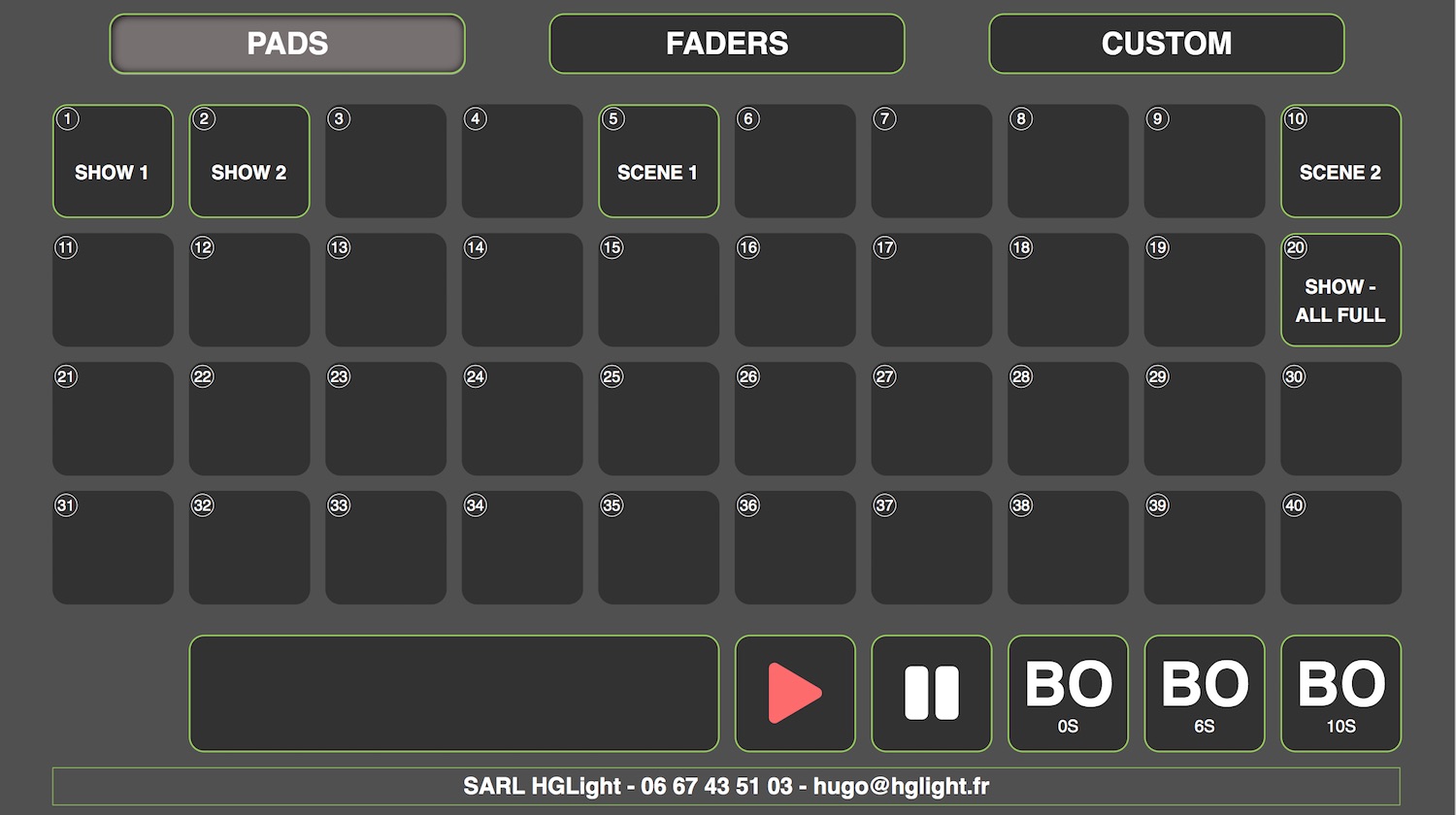

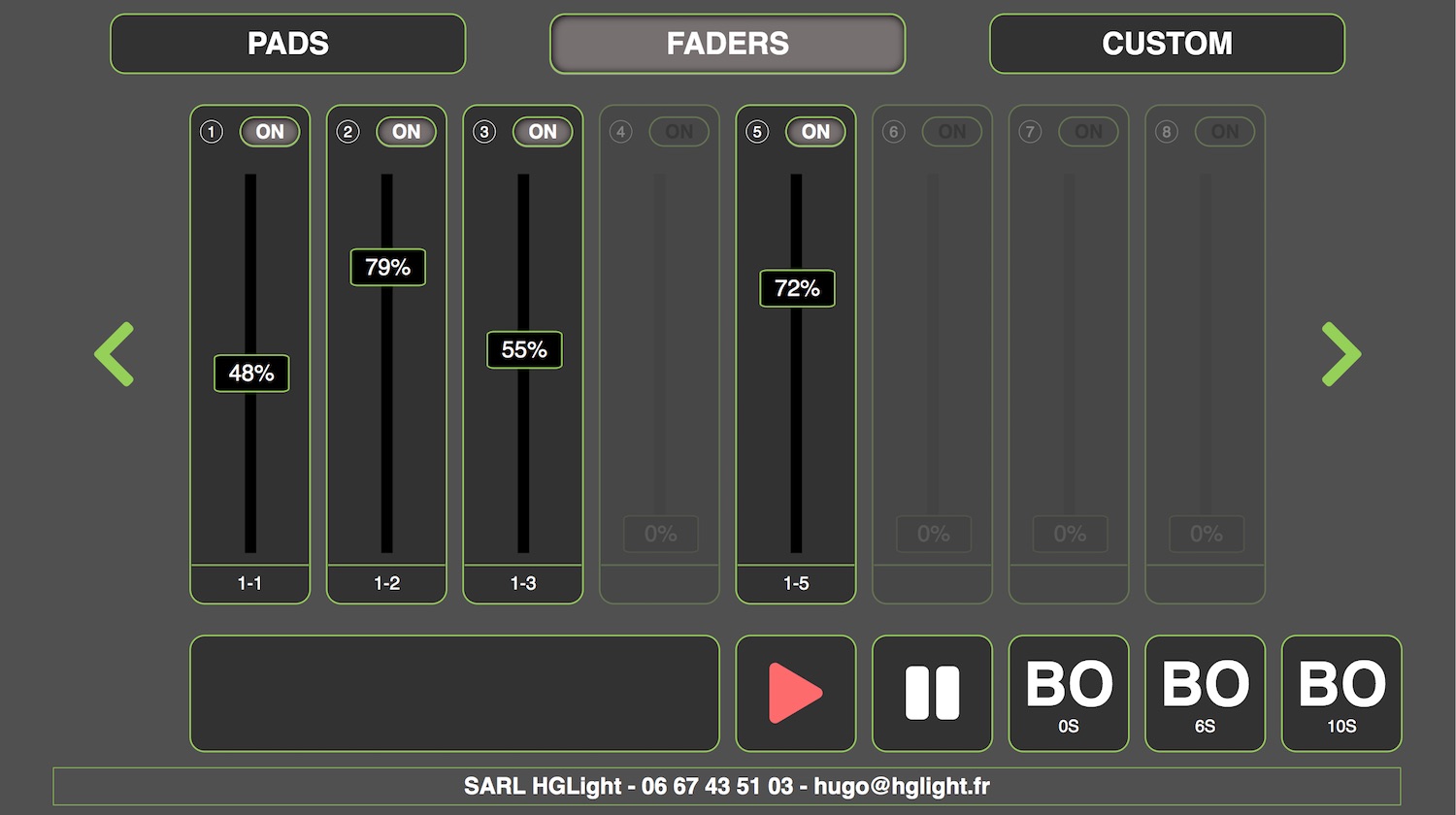

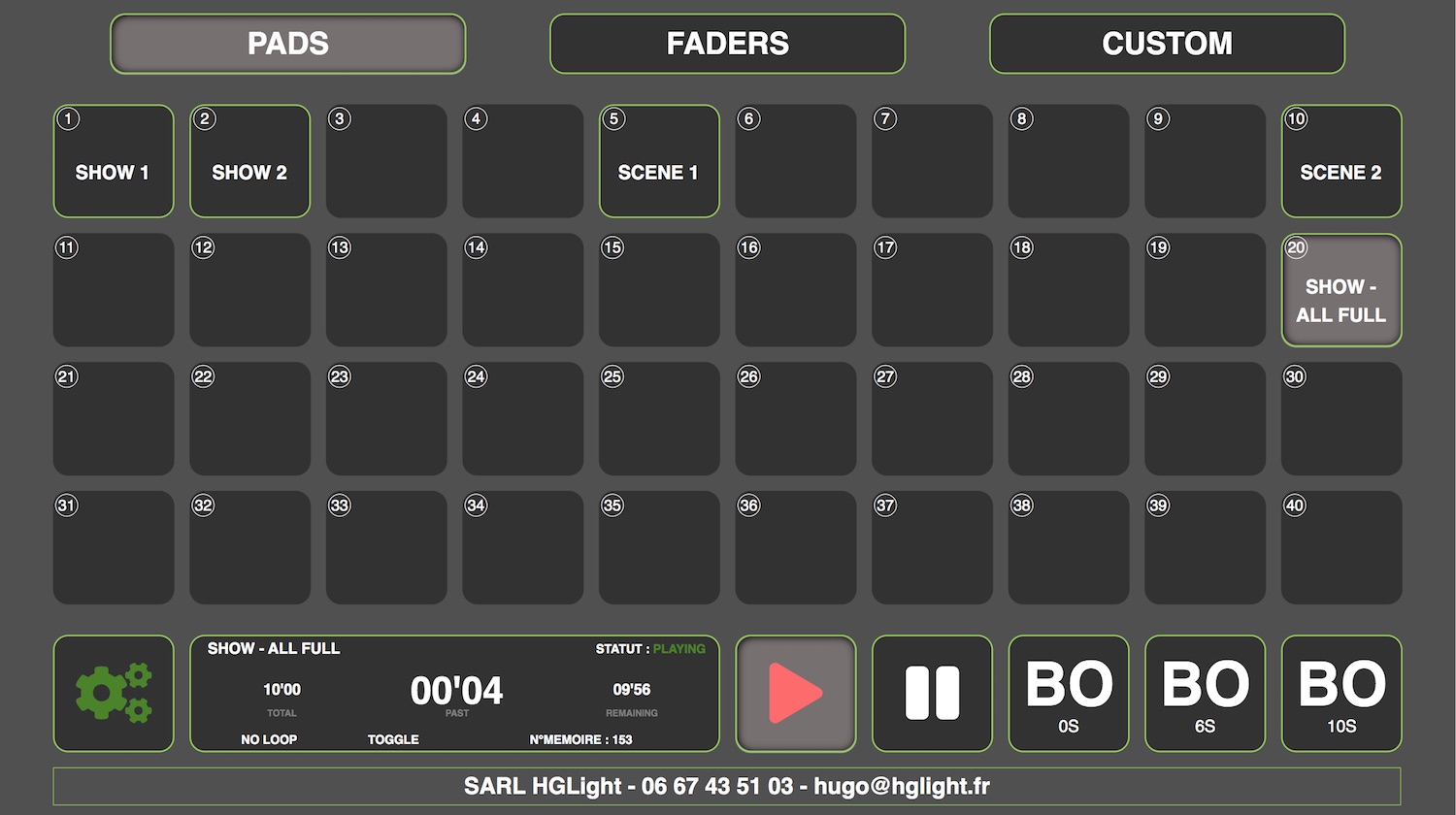

- 40 pads (show/scene) + 80 faders (1 canal DMX par fader)
- Fade IN/OUT pour chaque show/scene
- Fade IN/OUT à l’activation et à la désactivation de chaque fader
- Remote Art-Net (shows/scenes + faders)
- Planificateur de shows/scenes

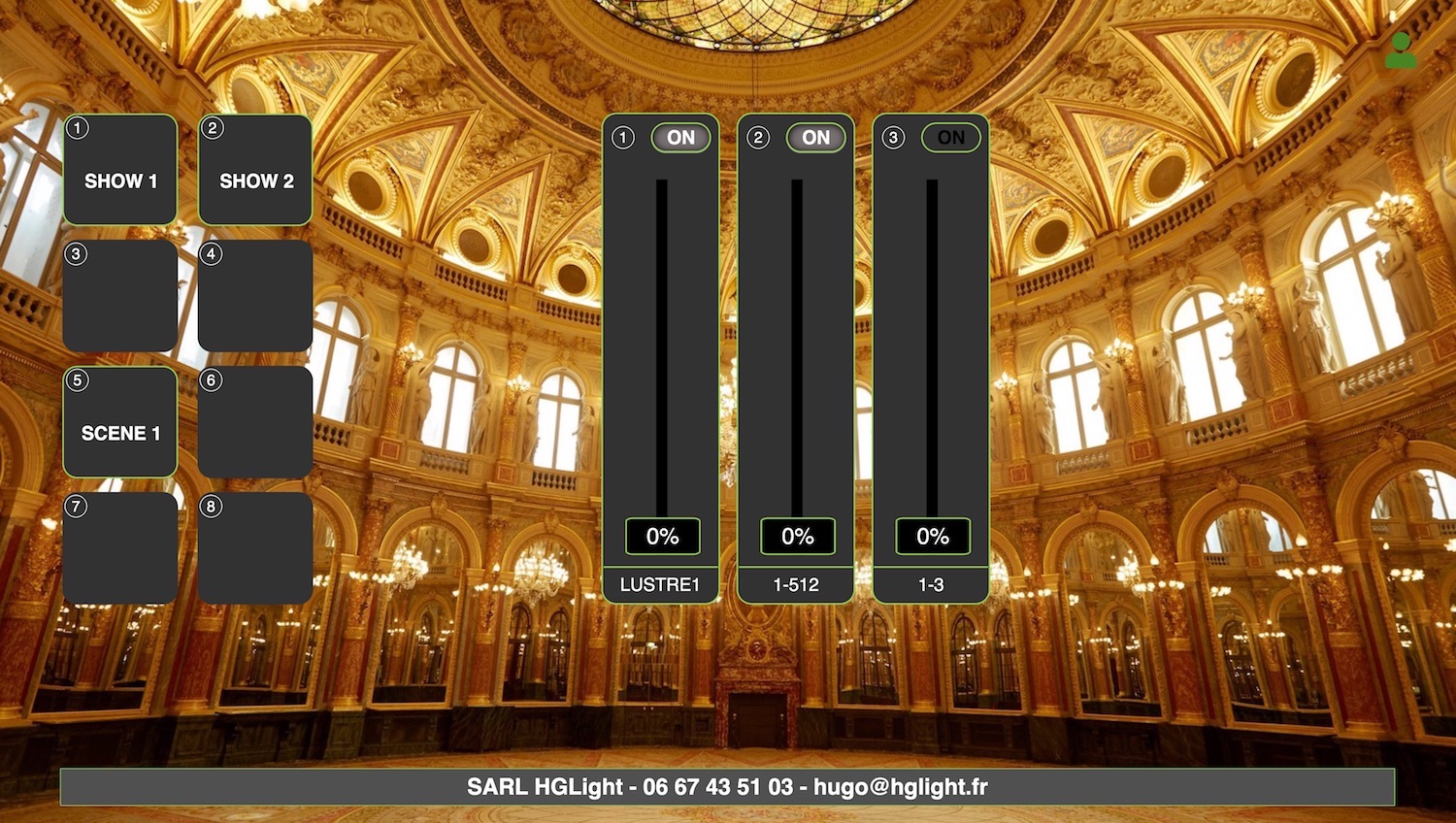

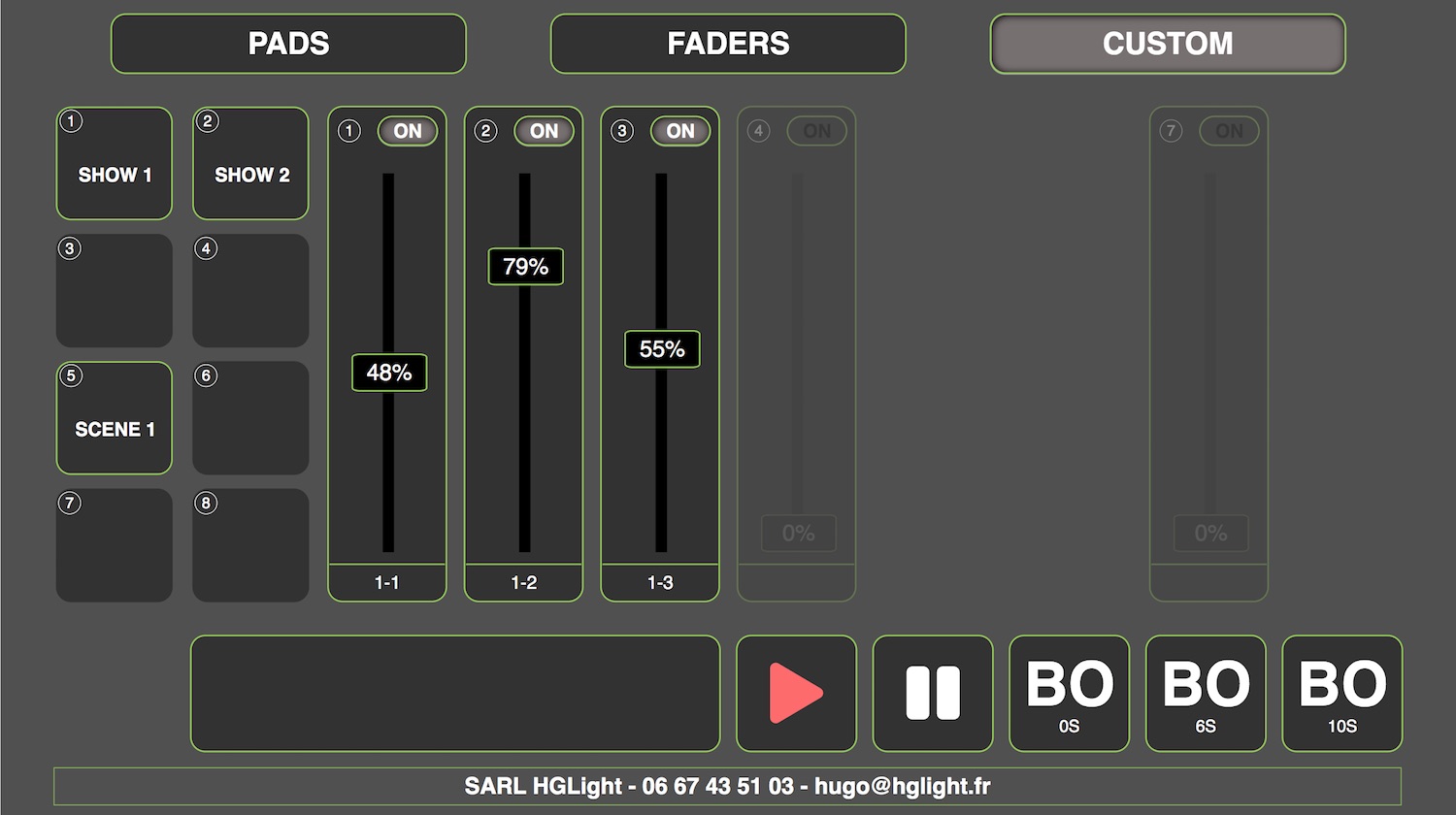

- Page “custom” permettant l’organisation de vos shows/scenes/faders importants
- Mode “simple node” permettant la reprise en main depuis une console externe facilement
- Tension d’alimentation : 220V AC

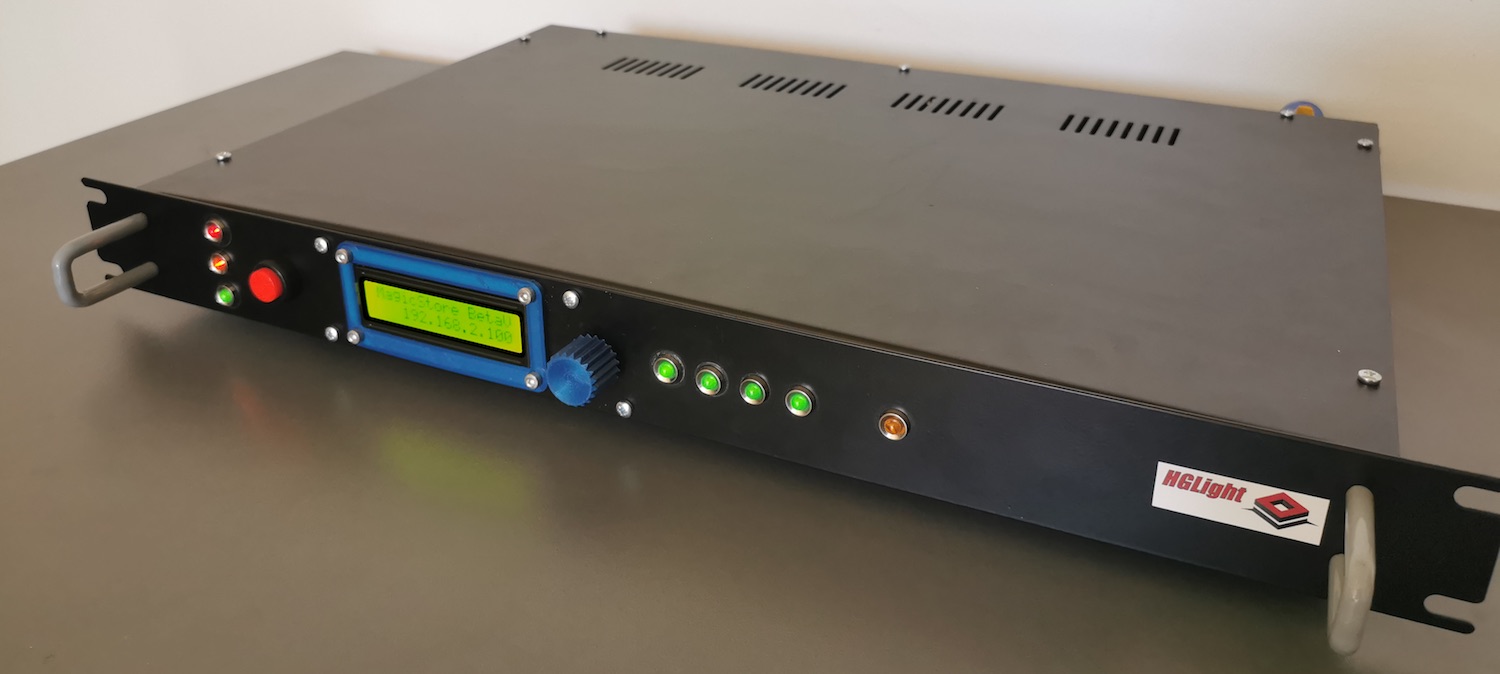

- Dimensions (mm) : rack 19” 1U, 480*290*44

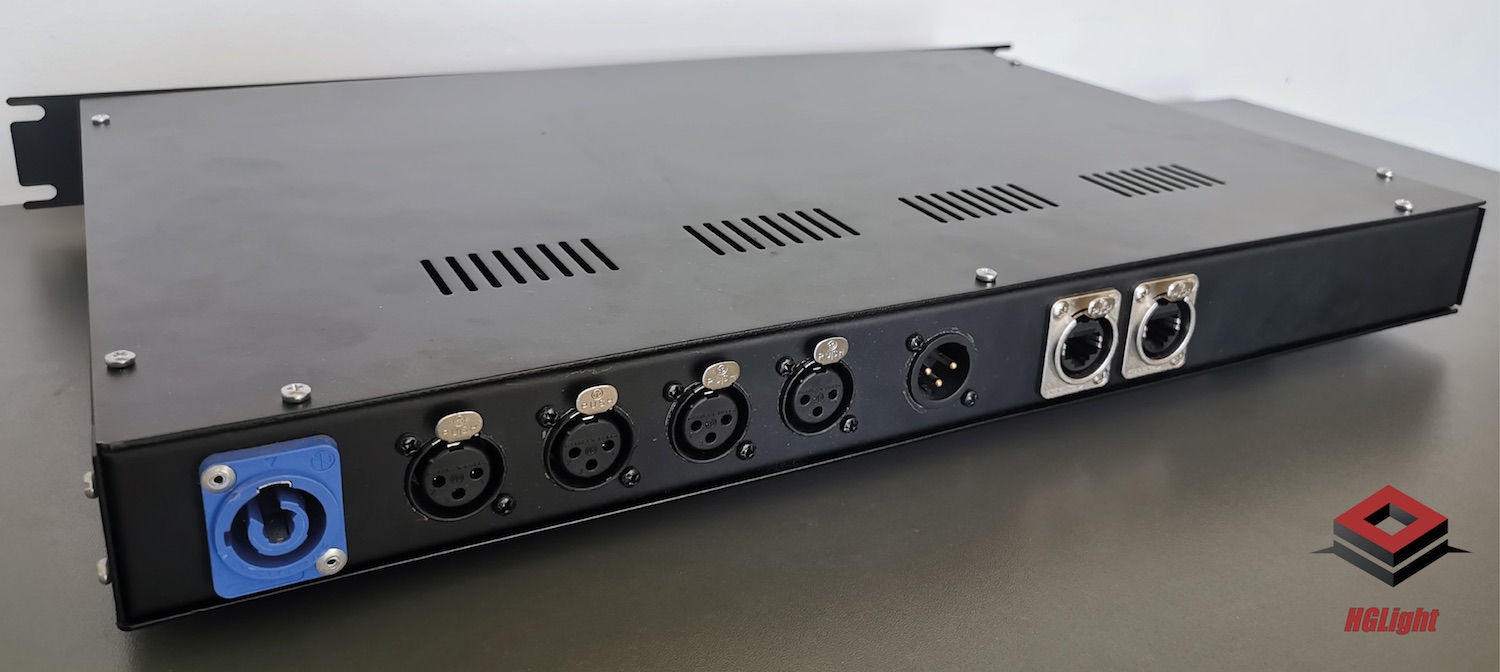

- Connecteurs (Neutrik) : 4* NC3FAH, 1* NC3MAH, 1* NAC3MPA-1, 2* NE8FDP
- Environnement opérationnel : -10°C / 40°C


- 4 Art-Net universes in inputs and outputs
- 4 DMX outputs + 1 DMX input
- Around 18 hours of recording time
- Use and configuration via web (real-time synchronization of all clients)
- 40 pads (show / scene) + 80 faders (1 DMX channel per fader)
- Fade IN / OUT for each show / scene
- Fade IN / OUT when activating and deactivating each fader
- Remote Art-Net (shows / scenes + faders)
- Show / scene planner
- “Custom” page allowing the organization of your important shows / scenes / faders
- “Simple node” mode allowing control from an external console easily
- Input voltage : 220V AC
- Dimensions (mm) : rack 19” 1U, 480*290*44
- Connectors (Neutrik) : 4* NC3FAH, 1* NC3MAH, 1* NAC3MPA-1, 2* NE8FDP
- Operational environment : -10°C / 40°C
